Avionics:

• King KMA-24 audio panel with marker beacon (View pilot's guide)
• Garmin GNS-530W WAAS IFR Approach Certified (Pilot's guide) (Quick reference)
• Garmin GNS-430W WAAS IFR Approach Certified (Pilot's guide) (Quick reference)
• L3 WX-500 Stormscope displayed on GNS-530W (View pilot's guide)
• Garmin GI-106A Indicator, #2 VOR/Localizer/ILS Glideslope
• King KT-74 ADS-B OUT Enabled Transponder Mode S (View pilot's guide)
• King KAP-150 Digital Autopilot, coupled to HSI and GNS-430 (View pilot's guide)
• King KAS-297B Altitude/Vertical Speed Pre-Select (View pilot's guide)
• King KCS-55A Slaved Compass System, slaved
• Flight Comm 403 Four Place Intercom (View pilot's guide)
• Garmin GI-275 EIS Engine Informaiton Systems measures EGT, CHT, Turbine Inlet Temperature, Oil temperature, volts, outside air temperature, fuel level and flow, and battery level (View pilot's guide)
• Shadin MiniFlo-L Digital Fuel Flow & Totalizer (View pilot's guide)
• CiES digital fuel senders in each of four fuel cells (View pilot's guide)
• SkyHunter 406 Model HF ELT with 6-position G-switch, internal GPS receiver and external GPS antenna, ELT antenna mounted interally in tail (View pilot's guide)
• Alpha Systems Eagle Angle of Attack indicator Above Dash HUD with flap module, how it works. (View pilot's guide)
• Microkit Landing Height Systems Model LHS-200-C with aural landing gear warning and height above ground call-outs (View pilot's guide)
• Avionics Cooling Fan

Additional Equipment:

• TKS Ice Protection System, incidental with windshield, prop, wings, horizontal and vertical stabilzers, ice light (View pilot's guide)
• Precise Flight Speed Brakes Deployable at any speed below Vne, doubles aircraft drag, doubles normal rate of descent (documentation)
• Aero-Trim electric rudder trim system (View pilot's guide)
• Four Place Oxygen, factory installed
• Long Range Fuel Tanks - 105 Gallons
• Dual Concorde RG-35AXC Platinum Series Batteries
• BatteryMINDer® 12248-AA-S2 charger, maintainer, sweep-pulse desulfation-conditioner (View pilot's guide)
• Recognition Lights
• Wing Sight Fuel Gauges

• Precise Flight Standby Vacuum System
• Tanis Engine Preheater System TSP6CYL-2927-115
• Tanis Cabin and Avionics Preheater System TAU03323
• Turbo GAMIjectors fuel injectors
• Electric Trim
• Power Tow 120V (corded) electric tug (View pilot's guide)
• XeVision^TM HID Xenon lighting system with XePulse^TM option

Interior:

• New Interior, 2014

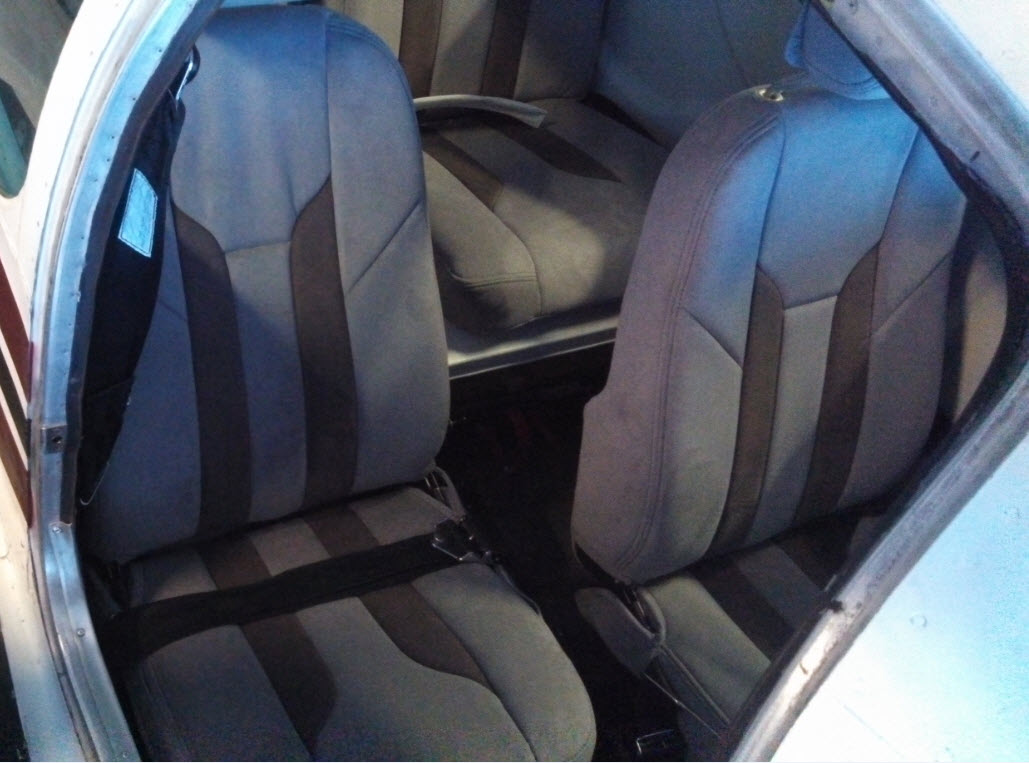

• Pewter and Graphite Ultrasuede Seating by SCS Interiors new 2014
• Inflatable Lumbar Support
• Headliner and Accents in Off-White
• Headrests
• AmSafe Seatbelt Airbag Restraint System (SOARS)(View pilot's guide) , Lap belts with shoulder harnesses, other seats
• LASAR Wiser Visors

Exterior:

• Skyscapes Lime Green Pearl with Charcoal Mist Metallic and Daytona Blue Accents (painted 2025)
• One-piece Belly
• Fully-Enclosed Gear Doors
• AeroLEDs Suntail position and anti-collision lights on tail
• Whelen Chroma Wingtip Position LED Lights
• Bob Fields Deluxe Inflatable Door Seals
• Rounded Windows
• Heated Hangar
• Cabin Cover
• Wing, Horizontal Stabilizer Covers
• Insulated Engine Cover, Bruce's Custom Covers

Modifications/Conversions:

• New insulation (SB208B)
• 1993 Rocket 305 Conversion at 1,600 TTAF:
  • RAM Continental TSIO-520-NB8B - 305 HP
  • 3 Blade Full-Feathering Propeller
  • Dual Concorde RG-35AXC Platinum Series Batteries, relocated to tail cone (New 05/2024)
  • 3200 Lbs Gross Weight (961 Lbs Useful)
  • 228 Kts @ FL240 @ 76% @ 22g/h
  • 1,900 ft/min climb
  • 11:1 glide ratio

• Major Repair and Alteration filings (FAA 337)
